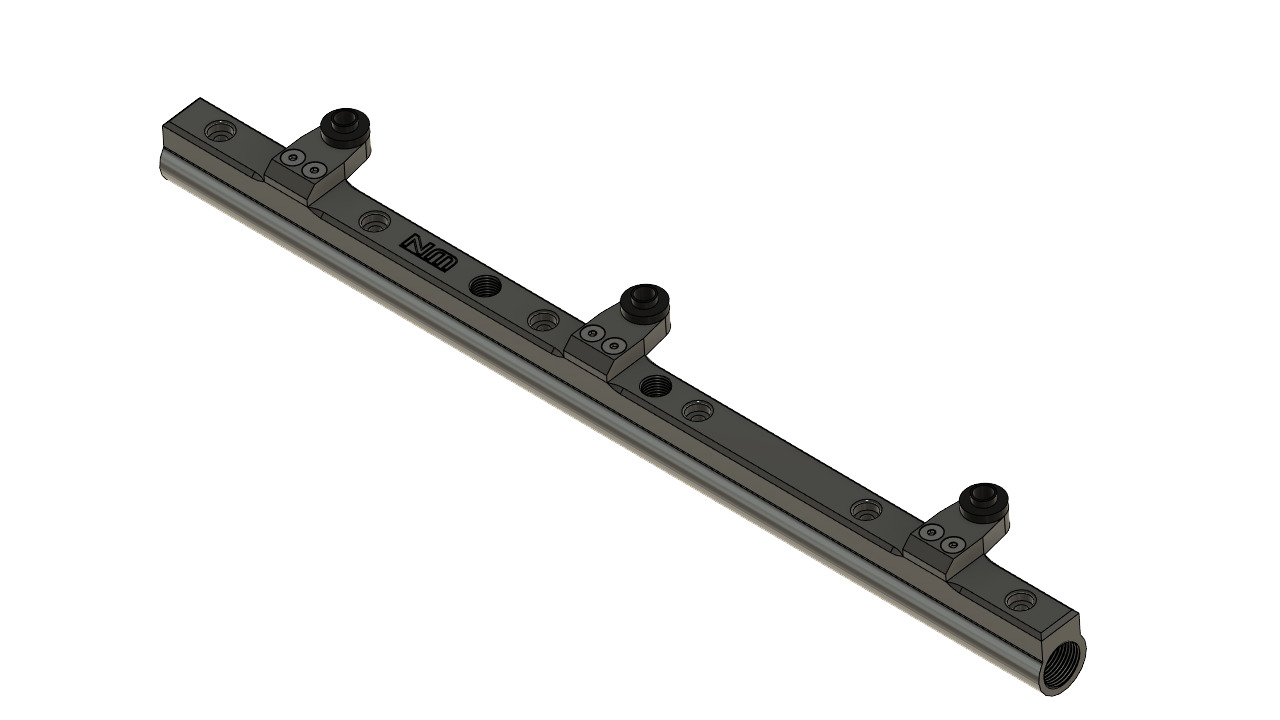

-10AN Fuel Rail for 7M

PROTOTYPE RELEASE

• -10 ORB threads on each end
• 11mm injector ports to match stock 7M injectors
• Two M14x1.5 ports on the bottom of the rail for feed or return
• Black anodized - E85 compatible
• Billet aluminum mounting brackets
• M8 Stainless Steel Socket Head Cap Screws to bolt to the stock rail location
• Nylon-CF spacers included for stock 7M standard height injectors (stock injectors and similar sizes like RC).

Mounting hardware included. Fittings not included.

6063 aluminum extrusion, 6061 brackets, 3d printed nylon-CF spacers. Fuel rail extruded in the USA, finish CNC machined in Canada.

PROTOTYPE NOTE:

We only have 4 rails available at this time. The quality of the exterior anodizing isn't as good as we'd like for production, so this small batch is discounted to reflect that. The finish quality was caused by the raw extrusion being anodized with no surface prep, so we'd suggest painting or coating the rail prior to installation (Cerakote or similar). The internal anodizing on the rails is fine for E85 compatibility. The anodizing on the brackets looks great.

Production rails will be tumbled prior to anodizing to give an even surface finish prior to anodizing.
